| 브랜드 이름: | Kingleader or custom |
| 모델 번호: | MKB-FN107B-TP |
| MOQ: | 1pcs |
| 가격: | US$175/pc Exworks |
| 포장에 대한 세부 사항: | 1pcs/상자, 10pcs/ctns |
| 지불 조건: | T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram |

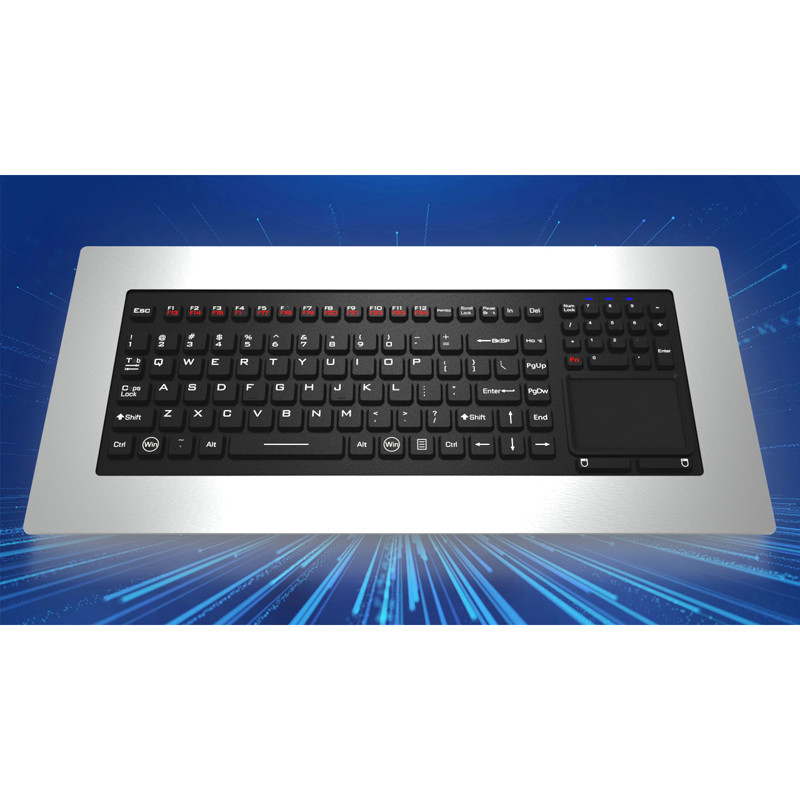

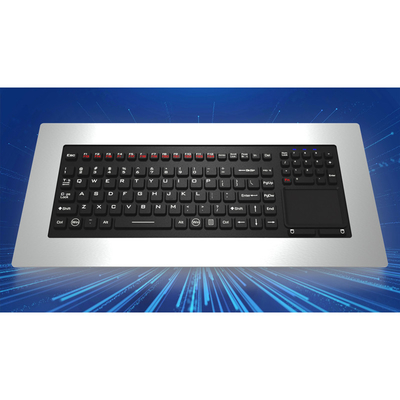

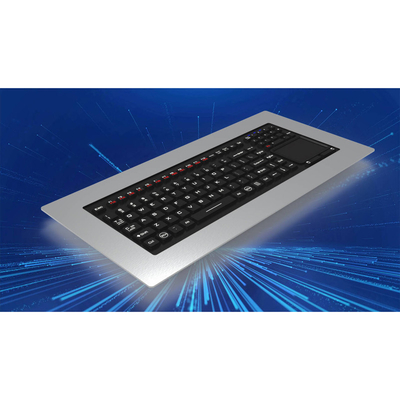

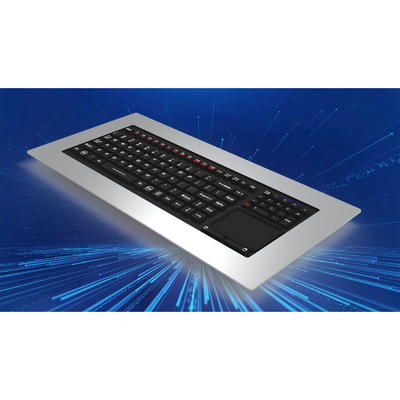

KINGLEADER’s SKB-FN107B-TP,is designed to provide a full-featured keyboard and pointing device in a rugged form factor that can be panel-mounted in any HMI panel.
It consists of a completely-sealed IP68-rated silicone keyboard and a stainless steel bezel,the silicone keyboard has 107 keys(including 12 function &multimedia keys,numeric keypad) and integrated touchpad.
Due to its unique design and build,it is rugged,virustatic,washable and can be disinfected with common hospital-approved disinfectant, it is an ideal input terminal used in industrial or medical environments.
|
Items
|
Specifications |
| Key Feature |
- Panelmount - 107 keys including 12 function&multimedia keys and numeric keys - Built-in touchpad - Addition of antimicrobials into silicone to prevent reproduction of harmful bacterials like Coronavirus or COVID-19 virus - EMC Certified for electrical medical equipment - Used in harsh industrial,military environment OR other medical environments where harmful bacteria exists - Colors of key membrane:Black or white or custom - Layout:US,UK,DE,FR or custom |
| Material |
- Front panel:SUS403 stainless steel - Bottom case:Electrolytic plate - Mounting brackets:Aluminum alloy - Membrane of keys:Industrial and medical grade silicone |
| Electrical Data | - Power supply voltage: DC 5 V ± 5% - Current rating: <=100 mA - Interface: USB or PS2 - EMC Emission:EN55022(B) |
| Environmental Characteristics | - Operating temperature: -20º C to + 60º C - Storage temperature: - 40º C to + 80º C - Saline mist: 96 hours, IEC 60512-6 - Damp heat test at + 40º C: 21 days, IEC 60512-6 - Dry heat test at + 85º C: 10 days, IEC 60512-6 |
| Mechanical Data | - Actuation force: 90 ±15g - Key travel: 1.50mm ±0.5mm - Lifetime (cycles): Min 10, 000, 000 actuations - Sealing protection: IP68 - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 |
| Compatible Operation System | - PS2: Win NT4, 98SE, 98ME, 2000, XP,Linux -USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10/11,Linux |
| Reliability |
-MTBF:>20,000 hours -MTTR:<30 minutes |
| Certification |
-CE,FCC,RoHS,IP68,Anti-microbial testing -EMC: EN 60601-1-2:2015, EN 61000-3-2:2019, EN 61000-3-3:2013 |
| Dimension | -406.00(L) x 195.00(W) x 16.00(T) mm,see the drawing shown below |
| Weight | 2.10 kgs |
|
